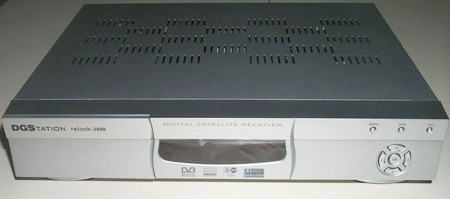

DG Station relook 3000 Twin Tuner PVR
The first Linux Twin PVR Receiver





Application and Expansion
LINUX O/S enables ultimate application and expansion to fulfill the customer's need.
Max. Two Channels Recording and one Prerecorded Program Playback
Enjoy advanced watching and recording TV program
Double Descrambling (Only Available on relook-3000) - Patent Pending
Descrambling 2 Channels with only one CAM (With only one CAM, you can watch encrypted program while recording another encrypted program at the same time)
Free Replay
Playback a prerecorded scrambled-program without CAM
Allmost Unlimited Channel Memory
Minimum 20,000 Channels (Based on HDD Size)
Enhanced Searech Channel Option
Auto-search by any type of CAS (Viaccess, Irdeto,,,) Multi selectable
Search by Satellite/ Network
Search by All T/P scanning
Unlimited Trick Play
Ultimate Trick Play on Real Time Live Program/ Recording Program/ Playback of Prerecorded
Program.
Smart EPG
By Auto-update. EPG shows Program information of All Satellite (You can see other satellite's
EPG without channel change while watching one satellite's channel
Program Search by Genre in EPG
Enhanced Recording Plan by Timer Setting/ In the EPG
Enhanced Playback by freely skip Ads./ Editing Prerecorded Program
USB Connection
Multilingual User Interface
S/PDIF for Dolby Digital Streaming Out
OTA S/W download
256 Color OSD
2 DVB Common Interface Slots
Subtitle & Teletext
DiSEqC 1.0 Compatible
Serial (RS-232C) Interface
TV/ VCR Scart Interface
1 Composite Video/ 1-Stereo Audio Interface
Variable HDD Size applicable up to 200 GB or Above
Time Shift on real time live program
Instant Replay/ Instant Jump Forward
Installation Wizard for Quick and Easy Installation



CPU
Type
IBM’s PowerPC405
Speed
225MIPS
Data/Instruction Cache
8KB/16KB
Tuner(twin) & Channel
Input Connector
2 x IEC169-2 female
Loop through Connector
2 x IEC169-2 male
Frequency Range
950MHz to 2150MHz
Waveform
QPSK
Symbol Rate
1 ~ 45MS/s
Loop through Out Impedance
75 ohms nominal
Loop through Gain
0 dB Typical / ±3dB Max
LNB Control
Band selection
22 KHz tone
Switch
DiSEqC 1.0/1.2
Polarization
13/18V (400mA Max/per each)
MPEG Transport Stream & A/V Decoding
Transport Stream
ISO/IEC 13818-1 Specification
Profile & Level
MPEG-2 MP@ML
Input TS Data Rate
90Mbit/S max.
Aspect Ratio
4:3, 16:9 with pan vector
Video Resolution
720 x 576(PAL), 720 x 480(NTSC)
Audio Decoding
MPEG-1 Audio Layer 1,2
Audio Mode
Stereo, Dual Channel, Joint Stereo, Mono
Sample Rate
32, 44.1, and 48KHz
Memory
Flash Memory

4MB
SDRAM

24MB
EEPROM
16KB
Conditional Access System
Type CI
PCMCIA TYPE 2 DVB CI standard
Number of Slot
2
A/V & Data In/Out
TV SCART

1 x SCART
VCR SCART
1 x SCART
RCA
Video x 1, Audio L/R X1

Data Interface

9 Pin D-Sub, RS232C,

Baud Rate 115200 Max

Local Storage
Type
ATA - 3
Size
80Gbyte
Power Supply
Input Voltage
AC90-240V, 50Hz/60Hz
Type
Linear PWM
Power Consumption
50W max. (Under 7W max. at stand-by mode)
Protection
- Separate Internal Fuse and Chassis
- Grounding The Input shall have lightning or Electric Shock Protection
Physical Specification
Size (W x H x D)
320mm x 58mm x 240mm
Weight
About 4 .0kg
Environment
Operating Temperature
+ 5 C ~ + 55 °C
Storage Temperature
- 40 C ~ + 65 °C
